Guided Tour

This guided tour is a walkthrough of the key features of Flutter Kit. It doesn’t cover everything, but after walking through it, you should have a sense of how to work with it.

Let’s start building!

Getting Started

Let’s start by creating a project and exploring what you get out of the box.

Before you begin

Make sure you have Flutter installed. If not, follow the Flutter installation guide.

Install the Hungrimind CLI

Install the CLI globally using npm:

Terminal window
npm install -g @hungrimind/hungrimind-cli

Authenticate

Log in using your GitHub account via the secure device flow:

Terminal window
hungrimind login

Follow the instructions in the terminal to complete the authentication process.

Create a New Flutter Project

Generate your Flutter app that uses the boilerplate with the CLI:

Terminal window
hungrimind flutter create my_app

Replace my_app with your desired project name.

Project Structure

Open your project and take a look at the folder structure, it should look something like this. Notice how it follows the folder by feature approach including the core folder for shared code.

lib
core
ui
...
utils
...
home
home_view.dart
home_view_model.dart
not_found
not_found_view.dart
not_found_view_model.dart
main.dart

Each feature (like home) contains everything related to that feature in one place. This keeps your codebase organized as it grows. The core folder contains shared code that is used across multiple features.

Run the App

Start the app and see what’s included:

Terminal window
flutter run

You’ll see the startup flow in action - the app shows a loading screen while initializing, then transitions to the main interface. This is handled by the Startup Feature we’ll explore later.

Understand MVVM Architecture

MVVM stands for Model-View-ViewModel. It is a design pattern that separates the UI from the business logic of the application and is the recommended architecture by the Flutter team.

This boilerplate is built using the MVVM architecture, with slight variations to make it more robust and easier to maintain.

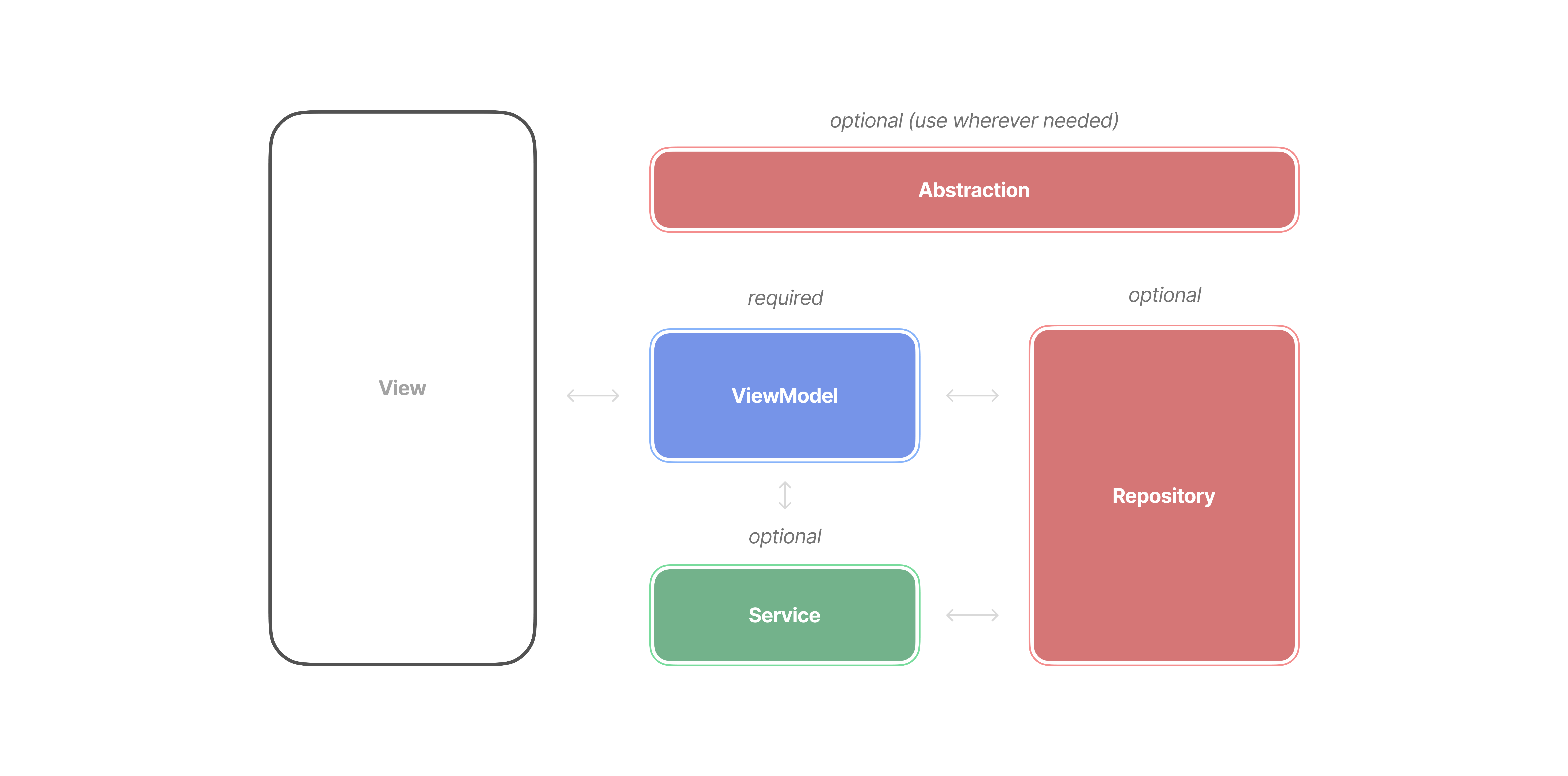

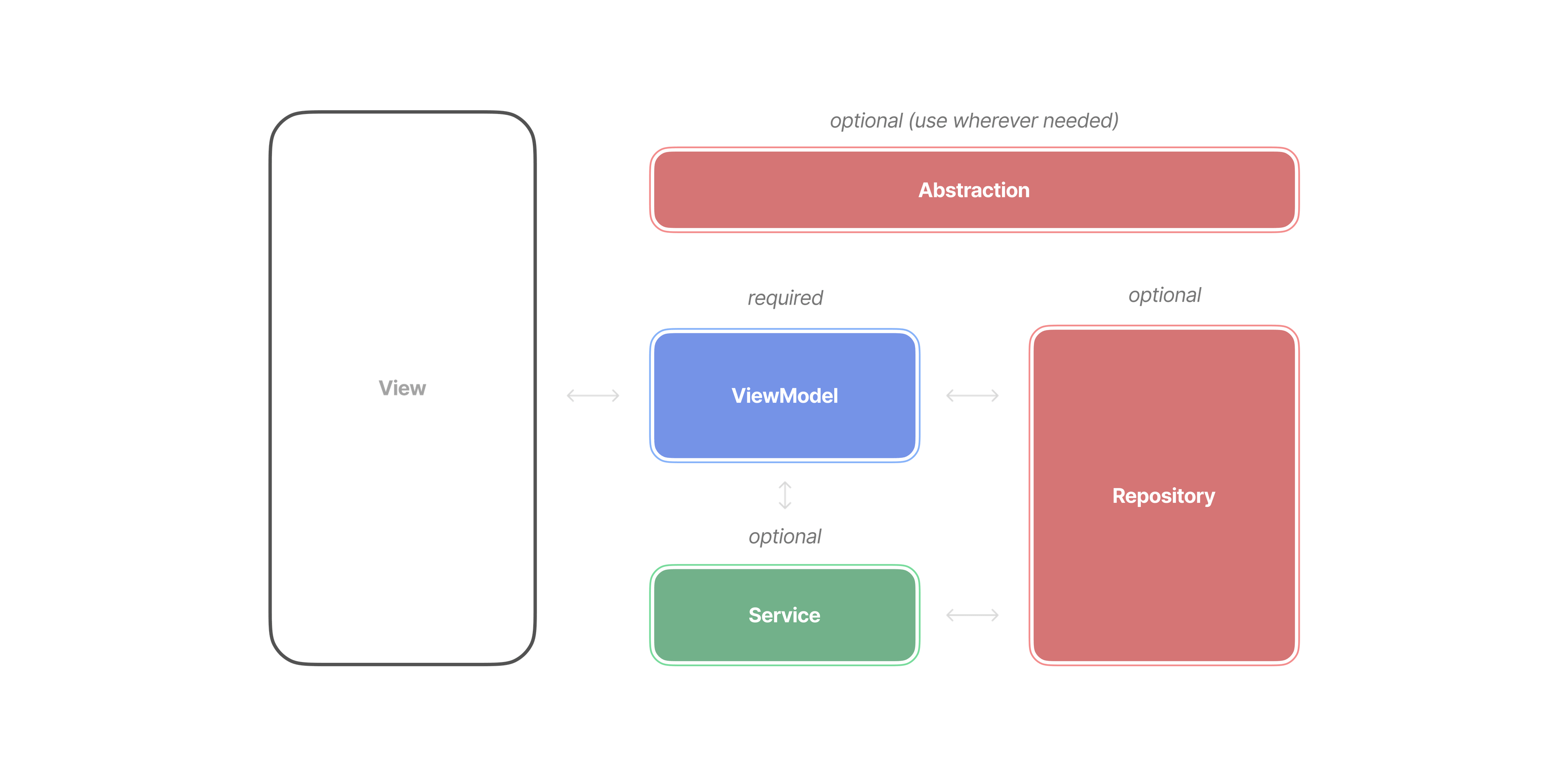

MVVM Architecture

View

The View is the UI layer of the application. It is responsible for displaying the data to the user and for handling the user’s input.

ViewModel

Each view has a 1-1 connection with a ViewModel. The ViewModel is responsible for handling the data and the logic for the view.

Service

Each ViewModel is tied to a specific View, but what if there is logic that needs to be shared between multiple views? Services look exactly like ViewModels, but they are not tied to a specific view.

Abstractions

The abstraction layer is responsible for handling any external dependencies and making them available via abstraction to our application. This is the only layer that can directly interact with the outside world.

Repository

Most applications need data from external sources like a database or an API. The Repository uses relevant Abstractions to fetch/store/manipulate data externally and make it available to the application.

Difference from Flutter’s MVVM

This is one of the few places where the boilerplate diverges from Flutter’s MVVM. Flutter’s MVVM documentation has no mention of any app-wide state management.

Because of this, what Flutter calls a Service is what this boilerplate calls an Abstraction. And the app-wide state in this boilerplate is handled with a Service (based on the Service layer pattern).

Build Your First Feature

Now let’s add a completely new feature to understand the typical development workflow. You don’t have to follow this exact pattern, but it’s a good starting point.

Create a Todo Feature

We’ll build a simple todo list feature that demonstrates all the core concepts.

Add the following feature folder to your project:

lib
todo
todo_view.dart
todo_view_model.dart
todo_service.dart
todo_model.dart
todo_repository.dart

Create the Service

When I am building applications, I always like to start from the data first. For this feature, our data will be used across the application, so it should be stored in a service that is accessible app-wide. Step one is creating the todo data class.

lib/todo/todo_model.dart
class Todo {
  const Todo({required this.id, required this.title, this.isCompleted = false});


  final String id;
  final String title;
  final bool isCompleted;


  Todo copyWith({String? id, String? title, bool? isCompleted}) {
    return Todo(
      id: id ?? this.id,
      title: title ?? this.title,
      isCompleted: isCompleted ?? this.isCompleted,
    );
  }


  factory Todo.fromJson(Map<String, dynamic> json) {
    return Todo(
      id: json['id']?.toString() ?? '',
      title: json['title'] as String? ?? '',
      isCompleted: json['completed'] as bool? ?? false,
    );
  }
}

Next, let’s create the service class. This service will have two functions:

  • addTodo - adds a new todo
  • toggleTodo - toggles the state between completed and uncompleted
Dispose

We always add a dispose; however, this TodoService will run from when the app is open until it’s closed, so the ValueNotifier would be garbage collected anyway. Not disposing shouldn’t affect your app’s function, but it is a good practice to always do it. In a different example, you might not need the ValueNotifier for the entire app, so you would need to dispose of it.

Imports

In all our example code, we don’t show the imports to keep the code clean. If you are copy-pasting, make sure you import the correct files.

lib/todo/todo_service.dart
class TodoService {
  final ValueNotifier<List<Todo>> todoNotifier = ValueNotifier([]);


  void addTodo(String title) {
    final newTodo = Todo(
      id: DateTime.now().millisecondsSinceEpoch.toString(),
      title: title,
    );


    todoNotifier.value = [...todoNotifier.value, newTodo];
  }


  void toggleTodo(String id) {
    final updatedTodos = todoNotifier.value.map((todo) {
      if (todo.id == id) {
        return todo.copyWith(isCompleted: !todo.isCompleted);
      }
      return todo;
    }).toList();


    todoNotifier.value = updatedTodos;
  }


  void dispose() {
    todoNotifier.dispose();
  }
}

Register the Service

Add your service to the locator so it’s available app-wide:

lib/config/locator_config.dart
Module<TodoService>(
  builder: () => TodoService(),
  lazy: false,
),

Create the ViewModel

lib/todo/todo_view_model.dart
class TodoViewModel {
  TodoViewModel({required TodoService todoService})
    : _todoService = todoService;


  final TodoService _todoService;


  ValueNotifier<List<Todo>> get todos => _todoService.todoNotifier;


  void addTodo(String title) {
    final trimmed = title.trim();
    if (trimmed.isNotEmpty) {
      _todoService.addTodo(trimmed);
    }
  }


  void toggleTodo(String id) {
    _todoService.toggleTodo(id);
  }


  void dispose() {
    // No-op for now
  }
}

Create the View

This is a simple view that shows a form to add a new todo and a list of todos.

UI Constants

This Flutter Kit comes with a set of UI constants that you can customize. In this example, we are using the context.spacing to add padding and context.kitColors to add colors.

lib/todo/todo_view.dart
class TodoView extends StatefulWidget {
  const TodoView({super.key});


  @override
  State<TodoView> createState() => _TodoViewState();
}


class _TodoViewState extends State<TodoView> {
  late final TodoViewModel _viewModel;
  final TextEditingController _textController = TextEditingController();


  @override
  void initState() {
    super.initState();
    _viewModel = TodoViewModel(
      todoService: locator<TodoService>(),
    );
  }


  @override
  void dispose() {
    _textController.dispose();
    _viewModel.dispose();
    super.dispose();
  }


  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Todo List')),
      body: ValueListenableBuilder<List<Todo>>(
        valueListenable: _viewModel.todos,
        builder: (context, todos, _) {
          return Column(
            children: [
               Padding(
                padding: EdgeInsets.all(context.spacing.md),
                child: Row(
                  children: [
                    Expanded(
                      child: TextField(
                        controller: _textController,
                        decoration: const InputDecoration(
                          hintText: 'Add a new todo...',
                        ),
                      ),
                    ),
                    SizedBox(width: context.spacing.sm),
                    ElevatedButton(
                      onPressed: () {
                        _viewModel.addTodo(_textController.text);
                        _textController.clear();
                      },
                      child: const Text('Add'),
                    ),
                  ],
                ),
              ),
              Expanded(
                child: ListView.builder(
                  itemCount: todos.length,
                  itemBuilder: (context, index) {
                    final todo = todos[index];
                    return ListTile(
                      title: Text(
                        todo.title,
                        style: todo.isCompleted
                            ? TextStyle(
                                decoration: TextDecoration.lineThrough,
                                color: context.kitColors.neutral500,
                              )
                            : null,
                      ),
                      leading: Checkbox(
                        value: todo.isCompleted,
                        onChanged: (_) => _viewModel.toggleTodo(todo.id),
                      ),
                    );
                  },
                ),
              ),
            ],
          );
        },
      ),
    );
  }
}

Add New Route

Add your new view to the router:

lib/config/router_config.dart
RouteEntry(
  path: '/todos',
  builder: (key, routeData) => const TodoView()
),

Now you can navigate to this fully working todo page. You can do it anywhere in your app, but for this showcase, we are going to hijack the start-up logic and navigate as soon as the app is initialized.

Ensure correct import

For Path to work, make sure you import core/utils/navigation/route_data.dart file, and not dart:ui.

lib/startup/startup_view_model.dart
Future<void> initializeApp() async {
  appStateNotifier.value = const InitializingApp();
  try {
    locator.registerMany(modules);
    loggingSubscription = _loggingAbstraction.initializeLogging();
    locator<RouterService>().goTo(Path(name: '/todos'));
    appStateNotifier.value = const AppInitialized();
  } catch (e, st) {
    appStateNotifier.value = AppInitializationError(e, st);
  }
}

Use APIs

Let’s enhance our todo feature to work with a real API.

Create a Repository

lib/todo/todo_repository.dart
class TodoRepository {
  TodoRepository({required HttpAbstraction httpAbstraction})
    : _httpAbstraction = httpAbstraction;


  final HttpAbstraction _httpAbstraction;


  Future<List<Todo>> fetchTodos() async {
    try {
      final response = await _httpAbstraction.get(
        Uri.parse("https://jsonplaceholder.typicode.com/todos"),
      );


      if (response.statusCode == 200) {
        final List<dynamic> jsonData = jsonDecode(response.body);
        return jsonData.map((json) => Todo.fromJson(json)).toList();
      } else {
        throw Exception('Failed to load todos: ${response.statusCode}');
      }
    } catch (e) {
      rethrow;
    }
  }
}

Update the Service

Switch the existing service to use the repository to load todos, without adding extra state:

lib/todo/todo_service.dart
class TodoService {
  TodoService({required TodoRepository todoRepository})
      : _todoRepository = todoRepository;


  final TodoRepository _todoRepository;
  final ValueNotifier<List<Todo>> todoNotifier = ValueNotifier<List<Todo>>([]);


  Future<void> loadTodos() async {
    final todos = await _todoRepository.fetchTodos();
    todoNotifier.value = todos;
  }


  void addTodo(String title) {
6 collapsed lines
    final newTodo = Todo(
      id: DateTime.now().millisecondsSinceEpoch.toString(),
      title: title,
    );


    todoNotifier.value = [...todoNotifier.value, newTodo];
  }


  void toggleTodo(String id) {
8 collapsed lines
    final updatedTodos = todoNotifier.value.map((todo) {
      if (todo.id == id) {
        return todo.copyWith(isCompleted: !todo.isCompleted);
      }
      return todo;
    }).toList();


    todoNotifier.value = updatedTodos;
  }


  void dispose() {
    todoNotifier.dispose();
  }
}

When using ValueNotifier<List<Todo>>, always assign a new list (e.g., spread into a new list) instead of mutating the existing list in place. ValueNotifier notifies listeners only when its value reference changes.

Access the Repository

In order for your app to access the repository, you need to register it with the locator. And the todo service now requires the repository to be injected. Notice here that the service must come after the repository in the registration.

lib/config/locator_config.dart
Module<TodoRepository>(
  builder: () => TodoRepository(
    httpAbstraction: locator<HttpAbstraction>(),
  ),
  lazy: false,
),
Module<TodoService>(
  builder: () => TodoService(),
  builder: () => TodoService(
    todoRepository: locator<TodoRepository>(),
  ),
  lazy: false,
),

Update the ViewModel

Trigger the initial load from the repository; everything else stays the same as the non-API-backed version:

lib/todo/todo_view_model.dart
class TodoViewModel {
  TodoViewModel({required TodoService todoService})
      : _todoService = todoService;


  final TodoService _todoService;


  ValueNotifier<List<Todo>> get todos => _todoService.todoNotifier;


  Future<void> init() async {
    await _todoService.loadTodos();
  }


  void addTodo(String title) {
14 collapsed lines
    final trimmed = title.trim();
    if (trimmed.isNotEmpty) {
      _todoService.addTodo(trimmed);
    }
  }


  void toggleTodo(String id) {
    _todoService.toggleTodo(id);
  }


  void dispose() {
    // No-op for now
  }
}

Update the View

Only trigger the initial load; the UI stays the same:

lib/todo/todo_view.dart
class _TodoViewState extends State<TodoView> {
  late final TodoViewModel _viewModel;
  final TextEditingController _textController = TextEditingController();


  @override
  void initState() {
    super.initState();
    _viewModel = TodoViewModel(
      todoService: locator<TodoService>(),
    );
    _viewModel.init();
  }
64 collapsed lines


  @override
  void dispose() {
    _textController.dispose();
    _viewModel.dispose();
    super.dispose();
  }


  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(title: const Text('Todo List')),
      body: ValueListenableBuilder<List<Todo>>(
        valueListenable: _viewModel.todos,
        builder: (context, todos, _) {
          return Column(
            children: [
              Padding(
                padding: EdgeInsets.all(context.spacing.md),
                child: Row(
                  children: [
                    Expanded(
                      child: TextField(
                        controller: _textController,
                        decoration: const InputDecoration(
                          hintText: 'Add a new todo...',
                        ),
                      ),
                    ),
                    SizedBox(width: context.spacing.sm),
                    ElevatedButton(
                      onPressed: () {
                        _viewModel.addTodo(_textController.text);
                        _textController.clear();
                      },
                      child: const Text('Add'),
                    ),
                  ],
                ),
              ),
              Expanded(
                child: ListView.builder(
                  itemCount: todos.length,
                  itemBuilder: (context, index) {
                    final todo = todos[index];
                    return ListTile(
                      title: Text(
                        todo.title,
                        style: todo.isCompleted
                            ? TextStyle(
                                decoration: TextDecoration.lineThrough,
                                color: context.kitColors.neutral500,
                              )
                            : null,
                      ),
                      leading: Checkbox(
                        value: todo.isCompleted,
                        onChanged: (_) => _viewModel.toggleTodo(todo.id),
                      ),
                    );
                  },
                ),
              ),
            ],
          );
        },
      ),
    );
  }
}

What’s Next?

You now have a solid understanding of the Flutter Kit! Here’s what you can explore next:

  1. API Requests - Advanced API integration patterns
  2. Navigation - Advanced navigation patterns and examples
  3. Theming - Styling, spacing, colors, and typography
  4. Logging - Structured logging across environments
  5. Startup - Configure app startup flows
  6. Internal Notification - Toasts and haptic feedback
  7. Translations - Internationalization and localization
  8. Testing - Unit vs widget testing with examples
  9. Deployment - Deploy your app to production
