Master Rendering in Flutter

Before reading this make sure you have a good understanding of Widget Trees.

Whenever you write Flutter apps, you are building out a Widget Tree. Don’t get me wrong, the trees are great, but when you open up a Flutter app you don’t see any trees. So how does that widget tree become the actual visual objects on the screen?

What is Flutter?

We need to get a little spiritual and zoom out to the very basics. What is Flutter actually? It’s a “framework”. That means that the words you type in your dart files are not the actual code that is being run on the devices. It’s more like a blueprint for what you want to happen.

Element Tree

This blueprint is used to create an Element Tree. You can think of an Element Tree as an “internal Widget Tree”, a more detailed and more complex Widget Tree that is used internally within the Flutter framework.

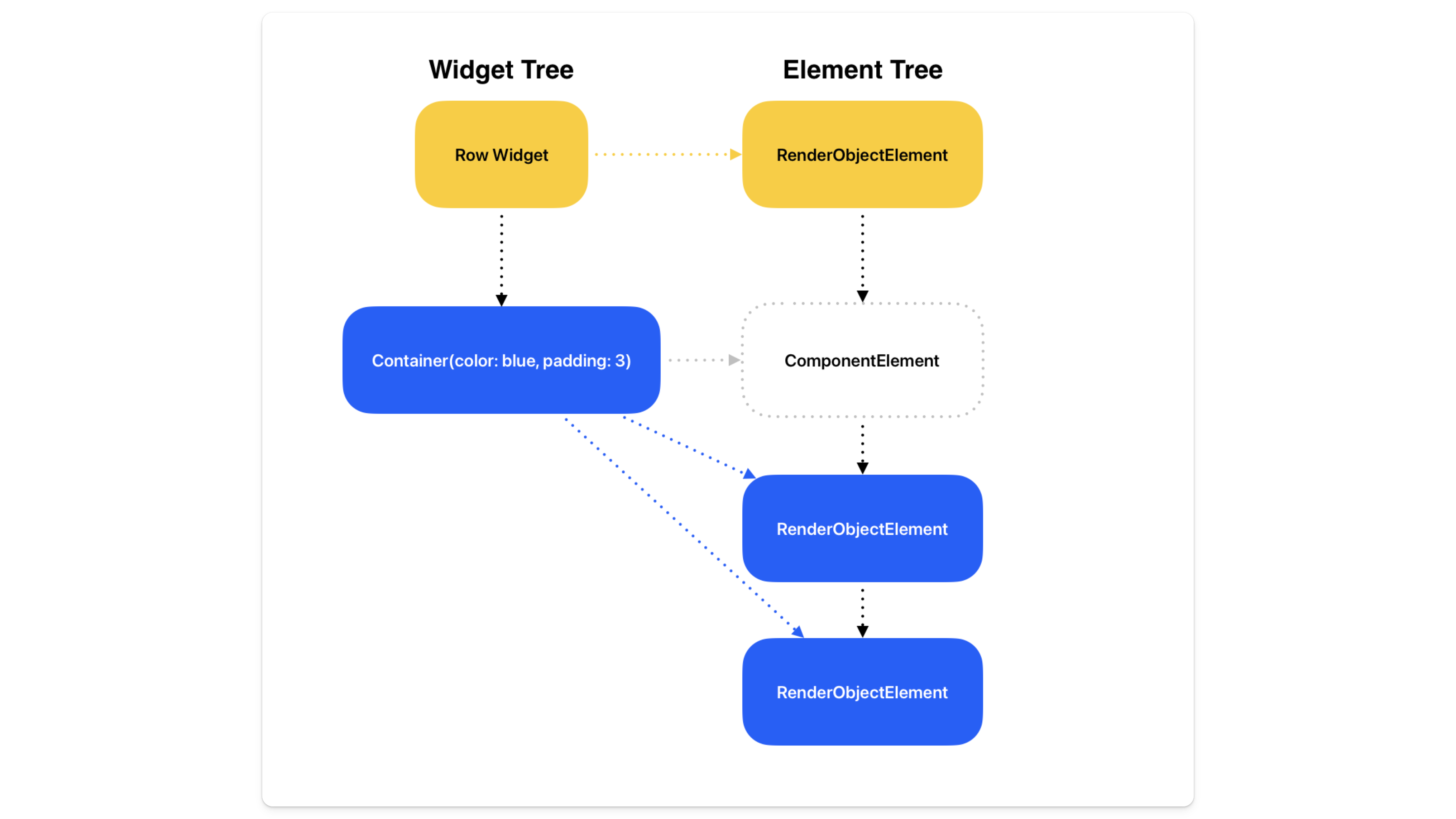

Element Tree

Why is it more complex? The element tree has a couple extra complexities that are hidden away from the developer. It manages the rebuilding of the widgets efficiently and holds your state. You can read more about that in the document about Keys.

It also converts that Widget Tree into something more complex to get ready for rendering.

Prepare to Render

The Element Tree has two types of Elements: ComponentElement and RenderObjectElement.

A widget can get converted into just a RenderObjectElement, or it can be converted into a ComponentElement and multiple RenderObjectElement elements. This all depends on what kind of elements each widget is mapped to.

For example, the Row widget needs to only layout its contents and has a direct RenderObjectElement associated with it that handles layouts. While the Container widget can become a whole bunch of elements in the Element Tree based on the properties you pass in. If you pass color and padding properties to the Container widget it will be converted into a ColoredBox widget nested within a Padding widget which has an associated RenderObjectElement. And both those RenderObjectElement will be held by the ComponentElement.

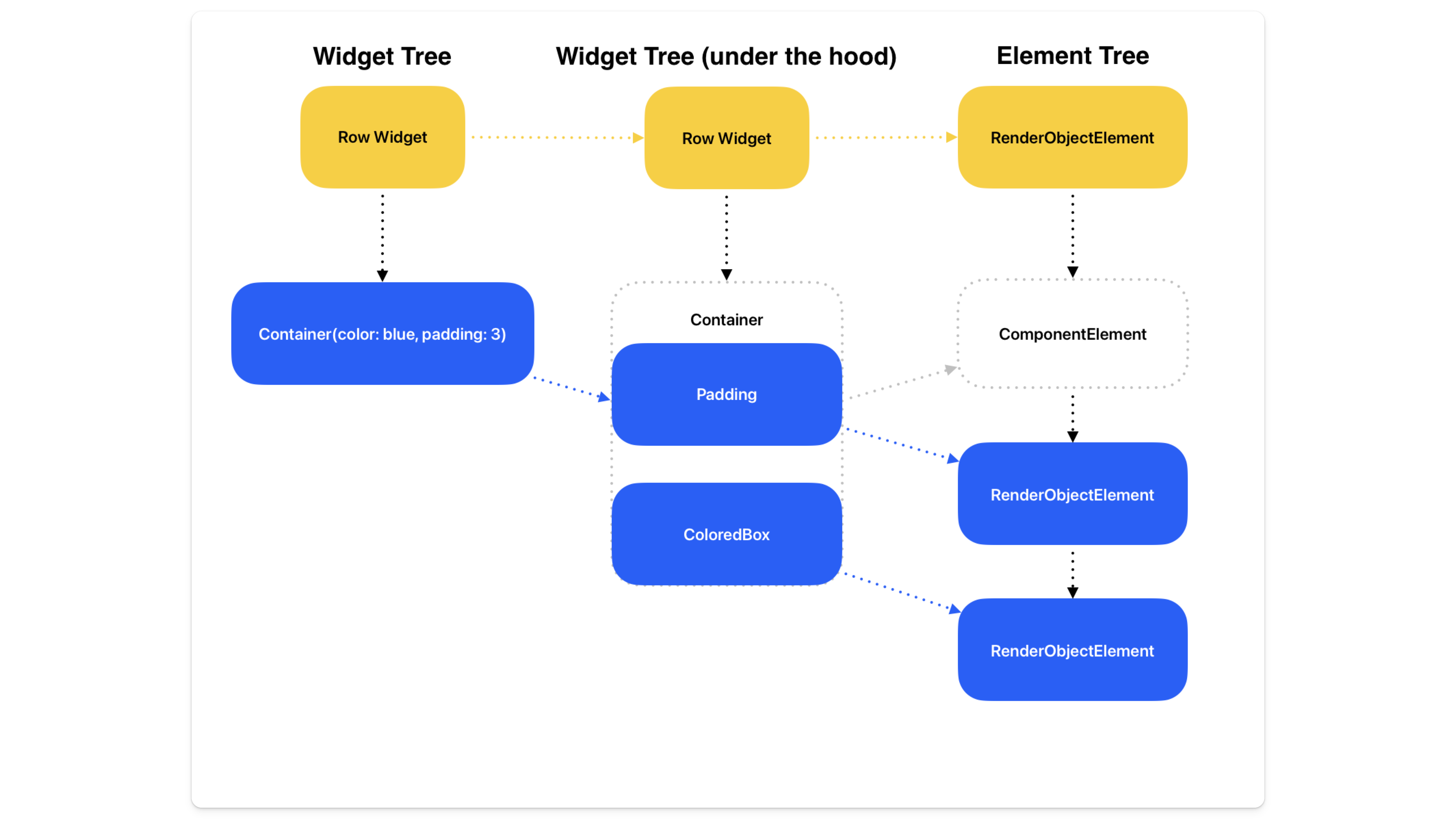

Element Tree

Render Tree

The last tree that Flutter uses is the Render Tree. To go from the Element Tree to the Render Tree, all the RenderObjectElement will turn into their RenderObject equivalents.

  • Row turns into RenderFlex
  • Padding turns into RenderPadding
  • ColoredBox turns into RenderDecoratedBox

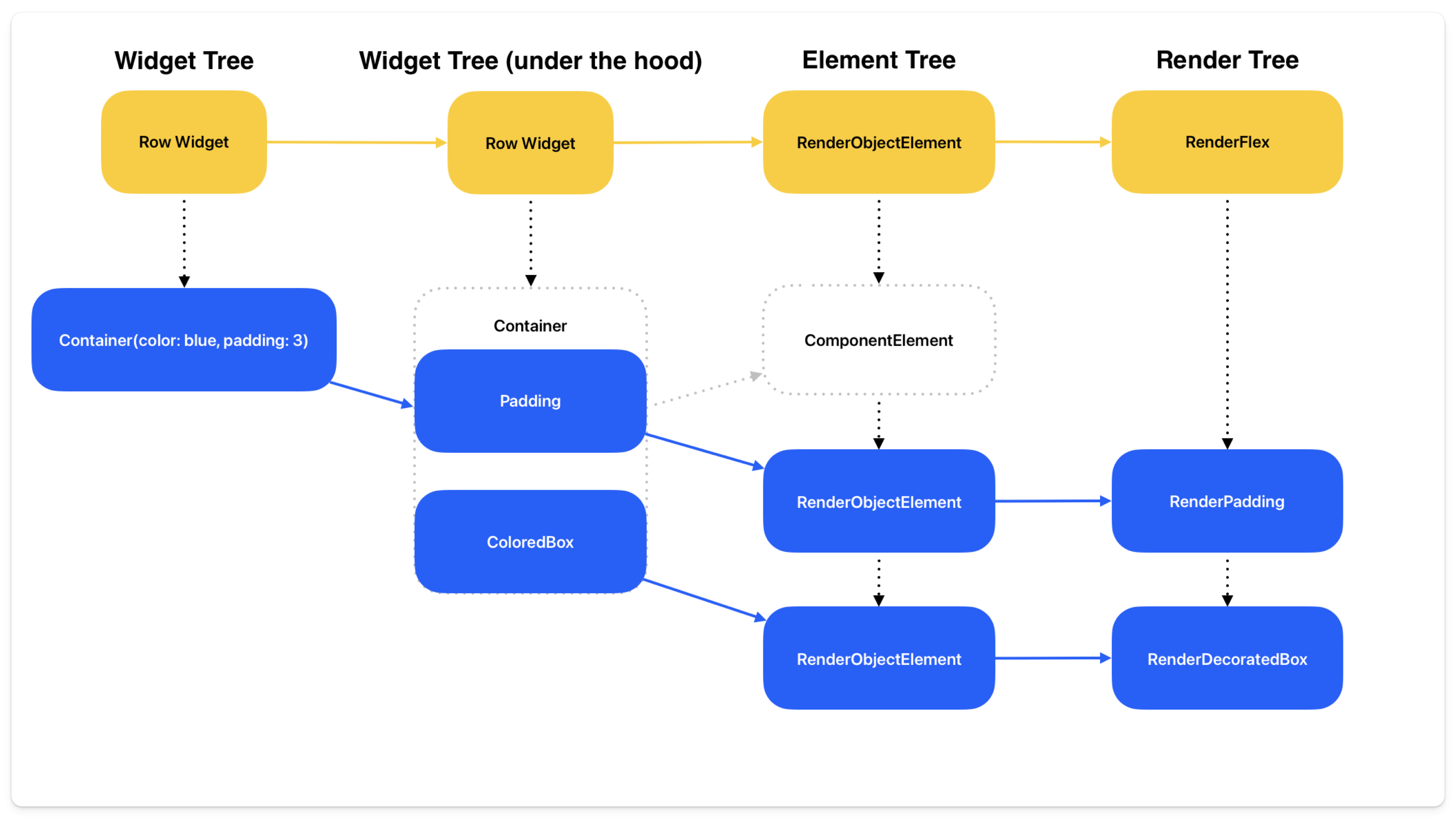

Render Tree

RenderFlex, RenderPadding, RenderDecoratedBox, as well as most RenderObject inherit RenderBox.

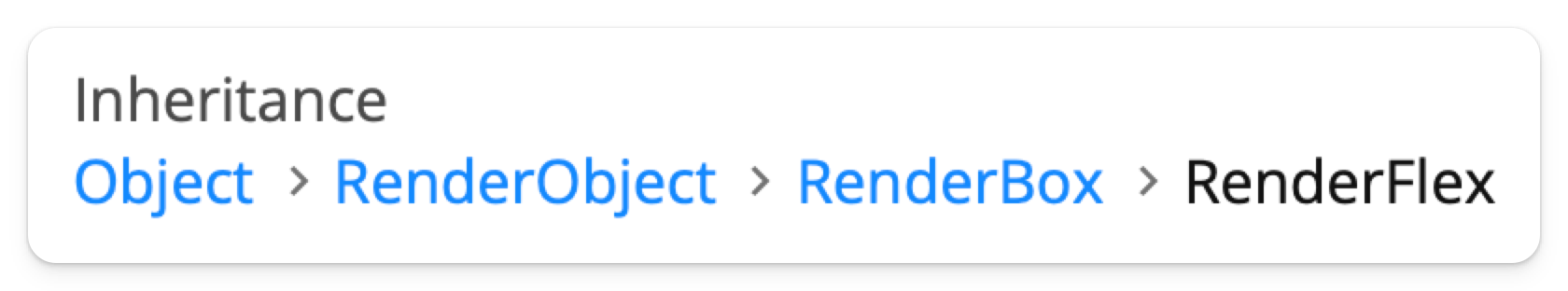

Render Box Inherit

Note: When you use Slivers those inherit RenderSliver.

The RenderBox has two jobs:

  • Find where the widget should be painted.
  • Paint.

To find where it should be painted, it uses the Box Constraint Model.

Box Constraint Model

The underlying mechanism for rendering your widgets onto the screen is called the Box Constraint Model. This is what is used by the RenderBox.

The box constraint model has 3 simple rules:

  1. Constraints go down.
  2. Sizes go up.
  3. Parent sets position.

These are all talking in terms of the Render Tree. The parent widget tells its child what the maximum size it can be (constraints), the child tells the parent what size within those constraints it will actually be, and the parent says where they will be located.

Understanding Constraints

The constraint for the widget at the top of the render tree is the full screen, then the tree gets traversed downward, its location is set using the box constraint model, and then it gets painted onto the screen.

This is how your app turns into actual pixels.

This model doesn’t work when the parent doesn’t know what the constraints are. This happens when you have an unknowable list of items that extend beyond the screen. This is what Slivers are for. Read more about them in the Slivers Document

The Full Story

All these different trees are done to make the developer experience as fun and simple as possible. These complexities are abstracted so you don’t have to think about how your Container with the padding property becomes a RenderPadding while you’re writing the day-to-day code.

But understanding the underlying mechanisms can help you decide which widget you should be using, and what could be the root issue of a bug you are facing.

For any content improvements or requests please leave a GitHub issue.
